Carrier-grade C-band EDFA (BA/LA/PA) with low noise figure, high output power, AGC/APC/ACC modes, and optional mid-stage/VOA/OSC for stable long-haul DWDM links.

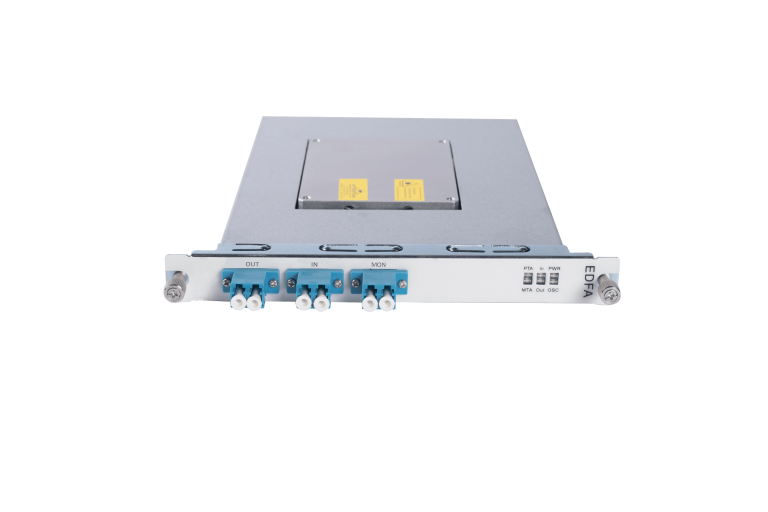

The EDFA – Erbium-Doped Fiber Amplifier boosts optical signals on C-band DWDM routes to extend span length and improve OSNR. Available as Booster (BA), Line/In-line (LA), and Pre-amp (PA) variants, it features low noise figure, flat gain, and fast transient control for multi-wavelength stability. Integrated AGC/APC/ACC modes keep power and gain constant under channel add/drop events, while optional mid-stage access supports VOA, OADM, or DCM insertion without upsetting balance. Front-access ports, monitor points, and alarms simplify turn-up and O&M at POP/IDC and backbone sites.
Band: C-band operation (typ. 1528–1563 nm)
Output power: up to +23 dBm (model-dependent)
Gain range: ~10–30 dB with flatness control
Noise figure: typically 4.5–6 dB
Modes: AGC / APC / ACC with transient suppression
Interfaces: LC/UPC standard (SC options); monitor/OSC ports optional
Options: mid-stage access, integrated VOA, input/output power monitors
Reliability: high-reliability pump lasers, ATC/ACC electronics, alarms & protection
Form factors: 1U rack module or plug-in card for HYD 1U/2U/5U platforms
